Product introduction

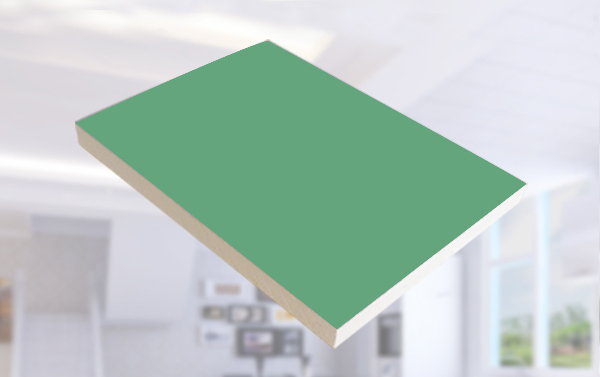

SAN ferronji water-resistant paper plasterboard is a high quality paper plasterboard with high purity gypsum core, high quality environmental protection lining paper and organic silicone oil additives. With the special treatment of organic waterproof green paper, greatly improve and enhance the water resistance of gypsum board, used in indoor high humidity or temporary outdoor places. SAN Franciscan water-resistant paper gypsum board fully conforms to Chinese GB/T9775 standard, with water absorption rate < 10%.
Product features
Green environmental protection
SAN furongji waterproof paper gypsum board to environmental protection desulfurization gypsum board as raw material, mixed with fiber and additives constitute the core material. So that the gypsum board has a certain moisture absorption function, green environmental protection.
Surface water resistant
The water-resistant paper surface of SAN Franciscan gypsum board was soaked with silicone oil imported from the United States, so that its surface water absorption is less than 160g and its waterproof performance is strong.
Core body water resistant
SAN francisco-based water-resistant paper plasterboard, in the production process in its plasterboard core body to add detest agent, so that its core body water absorption is reduced, play a good waterproof core.
Finishing processing
SAN ferronji waterproof paper plasterboard, in the final decoration process can be directly on the surface of the tile glue for tile, wall brick paste, no need to go through other procedures.
Comfortable living
The porosity of gypsum board is larger and the pore structure is distributed properly. When indoor humidity is higher, can hygroscopic, and when air is dry, can release a part moisture again, have certain regulation effect to indoor humidity accordingly, because plasterboard has this kind of distinctive "breath performance", can adjust indoor humidity inside certain range, make living condition more comfortable.
Product specification and performance
specifications
(mm) width
The length (mm)
(mm) longitudinal fracture load
(N) transverse fracture load
(N) combustion performance
And thermal conductivity
(W/m)
9.5 1200 2400/3000 >360 >140 flammability A2 0.18
12 1200 2400/3000 >500 >180 flammability A2 0.24
15 1200 2400/3000 >650 >220 flammability A2 0.24
SAN fulong base paper surface gypsum board is made of gypsum as the main raw material, mixed with fiber and admixture to form the core material, and firmly combined with the surface paper board. The main raw materials are gypsum plaster of Paris, paperboard, binder, coagulant, filling material, etc. Natural gypsum ore is the main raw material for making paper gypsum board. The company USES a high - purity environmental - friendly desulfurization gypsum.
Drywall installation
1. Gypsum board shall be installed from one end of the wall in accordance with the direction of the c-shaped keel.
2. Two adjacent gypsum boards naturally close together.
3. The lower opening of gypsum board is larger than 10mm from the ground, so avoid direct contact with the ground.
4. The top of the gypsum board should be with the roof tight, no gap (sound insulation, firewall exception).
5. The single-layer gypsum board on both sides of the keel must be installed at staggered joints.
6. The two layers of gypsum board on the inside of the same side do not need to be installed with staggered joints.
7. When the height of the partition wall is larger than the plasterboard for vertical splicing, both sides of the plasterboard and the same inside and outside two layers of plasterboard transverse joints must be staggered.
8. The plasterboard in the door frame should be put together the gap in the lintel, the lintel on both sides of the plasterboard should be staggered.
9. Self-tapping screw shall be driven with an electric screw gun.
10. Tapping screws should be sunk into the surface of gypsum board to a depth of 0.5mm -- 1mm.
11. The distance between the self-tapping screw and the enveloping edge is 10mm-15mm, and the distance from the cutting edge is 15mm-20mm.
Surface treatment of gypsum board
1. Seam treatment:
SAN flonkey offers a range of joint products including SAN flonkey joint filler, SAN flonkey joint paper tape, and SAN flonkey non-crack fiber tape. Users can choose different joint materials according to the required construction speed, ease of installation, and work characteristics.
2. Plastering treatment:
Gypsum board surface can be applied 2 -- 5mm thick SAN Franciscan full batch of gypsum putty.
Drywall finish
When using heavier vinyl wallpaper, must consult the manufacturer about the information, in order to facilitate the construction of base coating.
